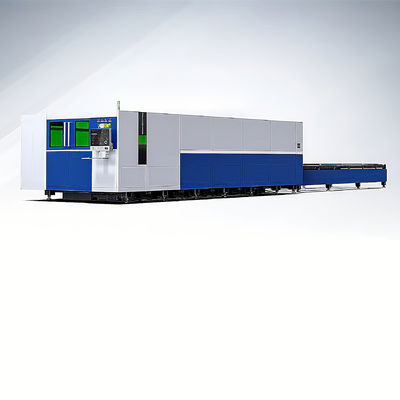

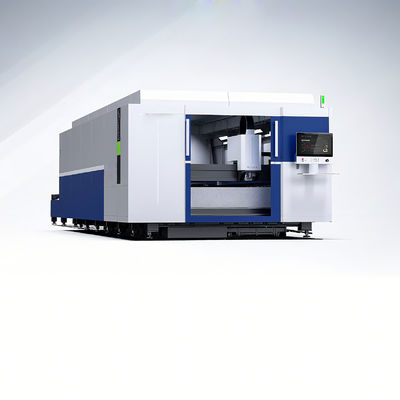

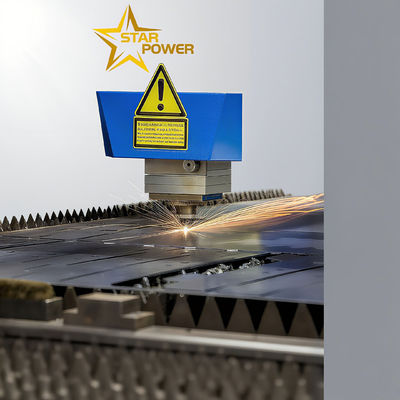

AI - Enabled Industrial - Grade High - Power Precision Laser Cutting System for Next - Generation Advanced Manufacturing

1 набор
MOQ
negotiable
цена
AI - Enabled Industrial - Grade High - Power Precision Laser Cutting System for Next - Generation Advanced Manufacturing
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Струйд -ход (мм): 4000*1500
Максимальная лазерная мощность: 3000 Вт
Тип машины: Столочная лазерная режущая машина типа рулона
Система: Сервоприводный
Напряжение: 380 В/220 В
Измерение (l*w*h): 2200*2400*4200 мм
Максимальная скорость позиционирования: 100 м/мин
Моторная мощность (кВт): 3OKW
цвет: Белый
защита окружающей среды: Да
Материал: стали
Выделить:

AI-enabled industrial laser cutting system

,

high-power precision laser cutter

,

laser cutting system for manufacturing

Основная информация
Место происхождения: Гуандун, Китай
Фирменное наименование: Star Power
Сертификация: CU,ISO
Номер модели: PMP - 3000 - ELT
Оплата и доставка Условия
Упаковывая детали: металлическая рама с пленкой
Время доставки: 1 месяц
Условия оплаты: L/C, D/A, D/P, T/T, Western Union, Moneygram
Поставка способности: 100 комплектов/наборов в месяц
Характер продукции
AI-Enabled Industrial-Grade High-Power Precision Laser Cutting System
Key Specifications
Attribute Value
Slide Stroke (mm) 4000*1500
Maximum laser power 3000W
Machine Type Roll type fiber laser cutting machine
System Servo
Voltage 380V/220V Optional
Dimension(L*W*H) 2200*2400*4200mm
Maximum positioning speed 100m/min
Motor Power (kw) 3okw
Colour White
Environment Protection Yes
Material Steels
AI - Enabled Industrial - Grade High - Power Precision Laser Cutting System for Next - Generation Advanced Manufacturing 0
Advanced Industrial Laser Cutting Solution

The PulseMaster Pro 3000 Elite (Model: PMP-3000-ELT) represents a breakthrough in industrial laser cutting technology, designed for precision manufacturing across automotive, aerospace, defense, electronics, medical device production, and premium metal fabrication sectors.

Core Features
  • 3000W high-performance fiber laser with exceptional beam quality and stability
  • Cutting speeds up to 160m/min for thin materials with ±0.005mm positional accuracy
  • Handles carbon steel (35mm), stainless steel (30mm), aluminum alloys (25mm), and non-ferrous metals
  • AI vision system for real-time material detection and parameter adjustment
  • Dual-pallet automatic exchange system enables 24/7 unmanned operation
  • Intuitive touchscreen HMI with offline programming capabilities
  • IoT connectivity for remote monitoring and predictive maintenance
  • CE and ISO 9001 certified with eco-friendly features
Technical Specifications
Parameter Specification
Laser Power 3000W Fiber Laser
Cutting Area 3000×1500mm
Max Cutting Speed Up to 160m/min (for thin materials)
Positioning Accuracy ±0.005mm
Max Material Thickness (Carbon Steel) Up to 35mm
Power Supply 380V/50Hz/3Phase
Machine Dimensions 5200×2500×2000mm
Weight 6500kg
Control System Industrial PC with AI & Edge Computing
AI - Enabled Industrial - Grade High - Power Precision Laser Cutting System for Next - Generation Advanced Manufacturing 1
About Foshan Star Power Technology

Founded in 2022 and located in Foshan, our company specializes in advanced manufacturing solutions including high-precision CNC technology for sink production lines. We provide complete equipment sets for laser cutting, bending, and welding operations to meet various production needs.

AI - Enabled Industrial - Grade High - Power Precision Laser Cutting System for Next - Generation Advanced Manufacturing 2
